Dan’s Honda DelShow Transtop

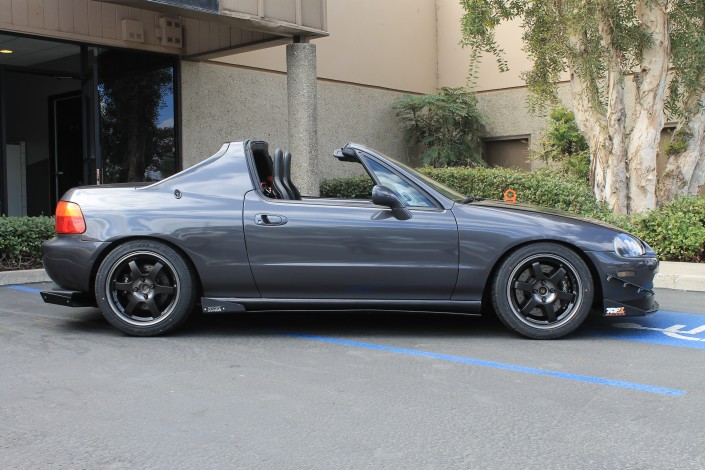

1997 Honda Delsol Trans-Top

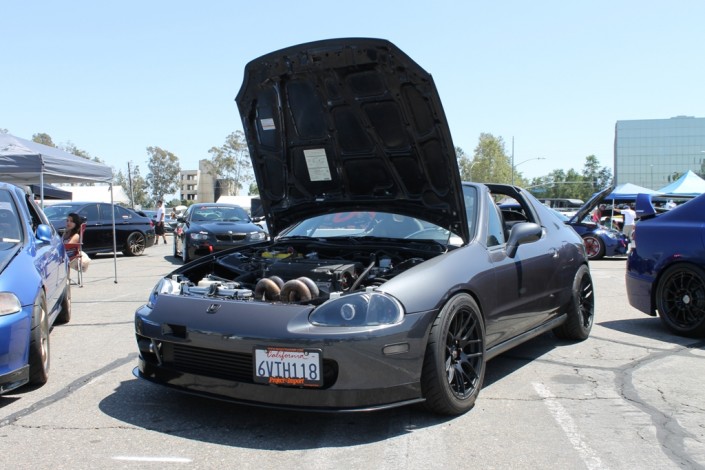

ENGINE MODIFICATIONS

ECU/TUNINGHondata S300 V2.

BLOCKLA sleeves, Manley Performance LS non-Vtec rod set, CP Pistons 84MM bore.

HEADSupertech Black nitride intake valves, OEM intake and exhaust valves, Supertech valve spring set for Honda B-Series vtec head (H-Rev).

TURBOGarrett GT3071

     Compressor:

-Wheel: 71mm w/ 56 trim

-Housing: .50 A/R

-Wheel: 56.5mm w/ 84 trim

-Housing: .64 A/R.

INTERCOOLERFull Race front mount intercooler.

INTAKESkunk2 Pro-series intake manifold, Skunk2 Alpha 70mm throttle body.

MANIFOLD/DOWNPIPE/EXHAUST: Full Race.

FUEL DELIVERYDeatschWerks Fuel Injectors 1000cc Honda Civic / Prelude / Integra 1992-2001.

COOLINGKoyorad Radiator.

COMPONENTSMoroso steel oil pan (Wet Sump), Endyne crank case breather.


DRIVETRAIN MODIFICATIONS

TRANSMISSIONIntegra GSR Transmission w/ Gearspeed Carbon Moly synchro’s.

CLUTCH/FLYWHEELCompetition Clutch SCC stage 4 w/ steel flywheel.

DIFFERENTIALQuaife ATB differential for GSR/ Type-R, Wavetrac 2-way LSD, Innovative billet motor and transmission mounts.


SUSPENSION MODIFICATIONS

ARMSBuddy Club front camber kit, BLOX rear camber kit.

SWAYBARSDelsol Vtec OEM front and rear sway bars.

BUSHINGSPassword JDM solid rear trailing arm bushings.

BRAKESWilwood front and rear big brake kit, Hawk HPS brake pads.

WHEELS & TIRES: Volk Racing TE37SL 16×7.5, 4×100, +35mm, Falken Azenis 215/45-R16.


MISC MODIFICATIONS

GAUGESHonda S2000 cluster.

EXTERIORTop1 EG6 winglets, Top1 EG6 street verson canards, Top1 EG6 race tow hooks, Top1 EG6 rear diffuser, Top1 EG6 Side skirts, VIS Racing OEM style carbon hood, VIS Racing OEM style carbon trunk lid, VIS Racing JDM spec carbon hard top, JDM DelSol Transtop.

INTERIORRecaro Sportster CS – Suede Insert & Vinyl Bolsters w/ Heater Package, Wedge Seat Brackets 1997 Honda Del Sol w/ Recaro Seats, Crow 5-Point Harness Restraint Kam Lock Black 3″ Straps.
