Jason’s G35 Track Monster

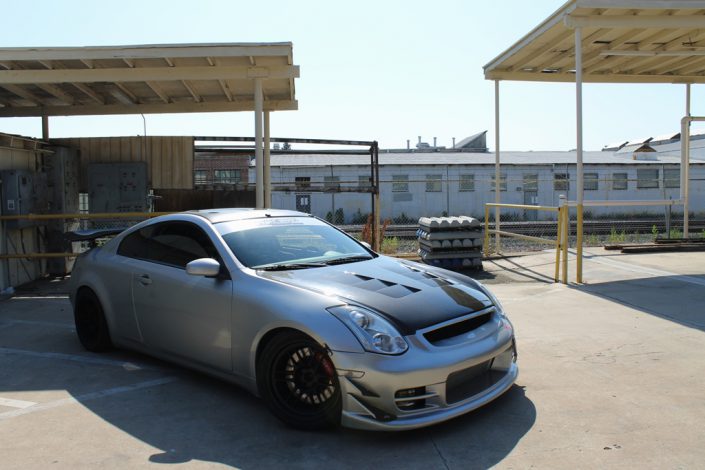

2003 Infiniti G35 Track Monster


ENGINE MODIFICATIONS

ECU/TUNING:

Haltech Platinum Pro w/ Racepak Dash

BLOCK: Manley Turbo Tuff Rods, CP Billet Pistons Bore 96.0mm+0.5mm – Compression 8.5, ARP Main Stud Kit.

HEAD: Kelford Stage 1 turbo cams, Supertech Black nitride intake valves, Supertech Inconel exhaust valves, Eibach EVS valve springs, ARP Head Stud Kit.

TURBO KIT: GTM Tuner Twin Turbo Kit Garret GT28RS .86ar.

INTAKE: Skunk2 Intake Manifold Spacer.

EXHAUST: Motordyne Engineering G35 Shockwave TDX2 for turbo models – 3″ piping.

FUEL DELIVERY: GTM Stage 2 Fuel System, Walbro 400LPH Fuel Pump.

COOLING: Koyo 53MM 350Z Radiator, Mishimoto Radiator Hoses, Cosworth Thermostat.

COMPONENTS: GTM Oil Pan Spacer, PI VQ35 Breather Kit.


DRIVETRAIN MODIFICATIONS

TRANSMISSION: OEM 6 Speed Transmission.

CLUTCH/FLYWHEEL: Clutch Masters FX300 w/ Clutch Masters Steel Flywheel

DIFFERENTIAL: Quaife ATB Differential, WHITELINE Differential Bushings, Nismo Differential Cover.


SUSPENSION MODIFICATIONS

SHOCKS/COILOVER: Tein Flex Coilovers, Swift Metric Coilover Replacement Spring 12KG (rear).

ARMS: SPC Front Upper Control Arms, SPL Pro Suspension Titanium Rear Mid Links, SPL Pro Suspension Rear Traction Links, SPL Pro Suspension Eccentric Lockout Kit.

SWAYBARS: Eibach adjustable.

BUSHINGS: WHITELINE Front Control Arm Bushings, WHITELINE Complete Rear Bushings with exception to Subframe.


BRAKE MODIFICATIONS

Stoptech Big Brake Kit:

RACE FRONT KIT:

355 x 32 mm Rotor/ 6 Piston Caliper, Stoptech Big Brake Kit: RACE REAR KIT: 355 x 22 mm Rotor/ Small 4 Piston Caliper, Hawk DTC 60 Front Brake Pads, Hawk HT-10 Front Brake Pads.


WHEELS & TIRES

Enkei RPF1  18×9.5 +15 Front – 18×10.5 +15 Rear, Toyo R888 265/35/18 Front – 295/30/18 Rear.


MISC MODIFICATIONS

GAUGES: Defi Red Racer Oil Pressure Gauge, AEM Uego Digital Wideband AFR Per Bank.

EXTERIOR: VIS Top Secret Style Carbon Fiber Hood, VIS Top Secret Style Polyurethane Front Bumper, PI Custom Front Splitter, APR GTC 300 67″ Spoiler.

INTERIOR: Sparco EVO bucket seat, Sparco 3” competition harness, Sparco Harness Bar, Cusco 6pt Chromoly Roll Cage.
