The Duce

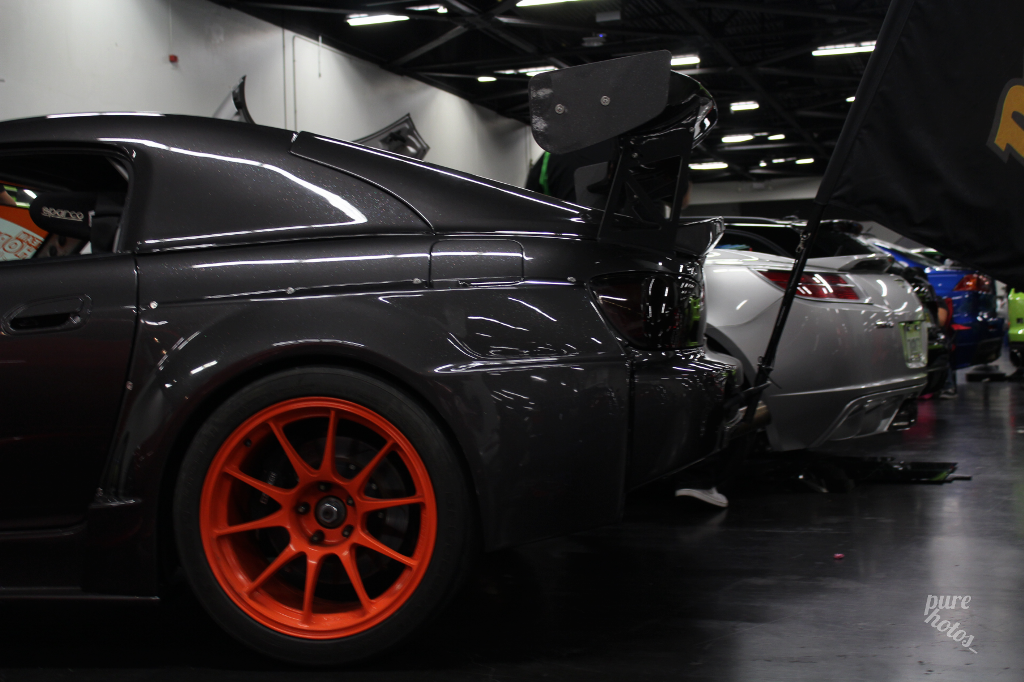

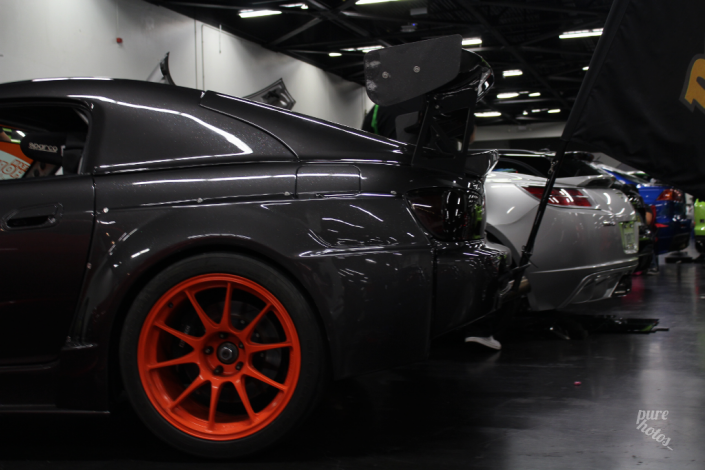

Project Import’s 2000 Honda S2000 “Time Attack” project.


ENGINE MODIFICATIONS

ECU/TUNING: AEM EMS Version 1.

BLOCK: Honda F20C w/AEBS T- Sleeves, Pauter 4340 T-Beam Rods, CP Billet Pistons oversized 88mm bore.

HEAD: Supertech Black nitride intake valves, Supertech Inconel exhaust valves, Supertech complete dual valve spring and steel retainer kit.

TURBO: Garrett GT3578R (aka GT35R, aka GT35/40R).Compressor

-Wheel: 82mm w/ 56 trim

-Housing: .70 A/R

-Wheel: 68mm w/ 84 trim

-Housing: .78 A/R Divided T3 w/ V-Band outlet

INTERCOOLER: PWR front mount intercooler.

INTAKE: Custom Hypertune intake manifold – fitted for eight injectors, JG Edelbrock Victor X 75mm throttlebody.

MANIFOLD/DOWNPIPE/EXHAUST: Custom.

FUEL DELIVERY: Aeromotive Eliminator Fuel Pump, Aeromotive Pro-Series EFI pressure regulator, Aeromotive 100 Micron fuel filter, Aeromotive 10 Micron fuel filter, Dual Walbro 255LPH pumps for prime.

COOLING: PWR Custom shortened radiator. Radiator equipped with oil cooler, Custom thermoplate, SPAL Dual electric fan.

COMPONENTS: Spoon baffled oil pan, Endyne performance oil pump for turbo application, Moroso crank case breather.


DRIVETRAIN MODIFICATIONS

TRANSMISSION: S2000 AP1 transmission with cryo-treated gears.

CLUTCH/FLYWHEEL: Competition Clutch 2600 w/ Competition Flywheel.

DIFFERENTIAL: Inline Pro S2000 rear differential kit Pro-series, Carbonetic 1.5 way differential for 300ZX twin turbo, J’s Racing rigid differential mounts.


SUSPENSION MODIFICATIONS

SHOCKS/COILOVER: Eibach Pro-R2 suspension.

ARMS: SPC Adjustable 1.5° ball joints (rear), Nagisa Auto Front Upper Control Arm, Nagisa Auto Rear Toe Rods.

SWAYBARS: 1 set Eibach adjustable, 1 set OEM AP1, 1 set Swift.

BRACING: Nagisa Auto Gacchiri Support (Fender Brace), Custom weldeded front upper arm bracing.

BUSHINGS: Asura uniball suspension bushing kit.


BRAKE MODIFICATIONS

Stoptech Big Brake Kit:

RACE FRONT KIT: 355 x 32 mm Rotor/ 4 Piston Caliper, Stoptech Big Brake Kit: RACE REAR KIT: 322 x 22 mm Rotor/ 2 Piston Caliper, Hawk DTC 60 brake pads.


WHEELS & TIRES

Wed Sports TC-105N wheels 9.5”front 10.5”rear, BF Goodrich G-Force R1 265/35/185 front 285/30/18 rear.


MISC MODIFICATIONS

GAUGES: Apex-I link meters.

EXTERIOR: Extreme Dimension Amuse replica GT1 complete body kit.

INTERIOR: Sparco Pro-ADV bucket seat, Sparco 3” competition harness.
